Battery Energy Storage Systems Explained for Homeowners

Australia installed 221,000 residential battery systems in 2025, a threefold increase on the previous year, adding 4,790MWh of storage capacity. SunWiz's Australian battery market data shows that household batteries are no longer a specialist purchase. They're becoming part of how Australian homes produce, store and use electricity.

That growth raises a more useful question than whether batteries are popular. What happens to the stored energy after installation? A battery can reduce grid imports, preserve solar for the evening and support the electricity network, but its financial value depends on how it's controlled, how often it's dispatched and whether its tariff matches your household's load.

This guide explains battery energy storage systems for homeowners in Queensland and New South Wales. It covers the hardware, sizing, efficiency, export rules, Virtual Power Plants and the practical trade-offs behind a Bring Your Own Battery, or BYOB VPP, arrangement.

Why Australian Households Are Rethinking Battery Energy Storage Systems

The household battery market has moved quickly. By the end of 2025, 4.6% of Australian homes had a battery installed, according to SunWiz's Australian battery market report. That figure matters because it changes the discussion from “Should I buy a battery?” to “Am I using the battery I already own effectively?”

A home battery changes the timing of electricity use. Rooftop solar usually produces most strongly during the middle of the day, while household demand often rises later, when people return home, prepare meals and use heating or cooling. Without storage, surplus solar may be exported when network conditions limit its value. With storage, some of that energy can be held for later use.

The daily operating question

A battery isn't automatically a bill-reduction machine. It follows a control strategy. That strategy may prioritise:

• Self-consumption: Store surplus solar and use it later in the home.
• Peak shaving: Discharge when household demand and wholesale market conditions are stronger.
• Backup reserve: Keep part of the battery available for an outage.
• Grid participation: Make spare capacity available through a coordinated VPP.

The National Electricity Market, or NEM, creates opportunities because electricity supply and demand change throughout the day. AEMO data recorded average battery discharge of 215MW and an evening-peak discharge increase of 463MW year on year in the 12 months to Q3 2025. The Western Australian Government's BESS guidance links those figures to the growing operational role of batteries during the period when solar output falls and demand is commonly higher.

Practical rule: A battery's value comes from the decisions made about its stored energy, not simply from the number printed on its casing.

Why VPP participation changes the calculation

A standalone battery may sit idle once it has charged, particularly if the home has low evening demand or the export limit prevents further solar production. A VPP can coordinate spare capacity across many homes and respond to network or market conditions. The homeowner still needs a reserve for household use, and the VPP must operate within the battery's warranty, inverter and network constraints.

For owners in NSW and Queensland, the key comparison isn't only the feed-in tariff. It's the total value created through avoided grid purchases, controlled exports, demand response and any retailer allowance or bill credit. That requires reviewing actual dispatch behaviour rather than assuming every stored kilowatt-hour has the same value.

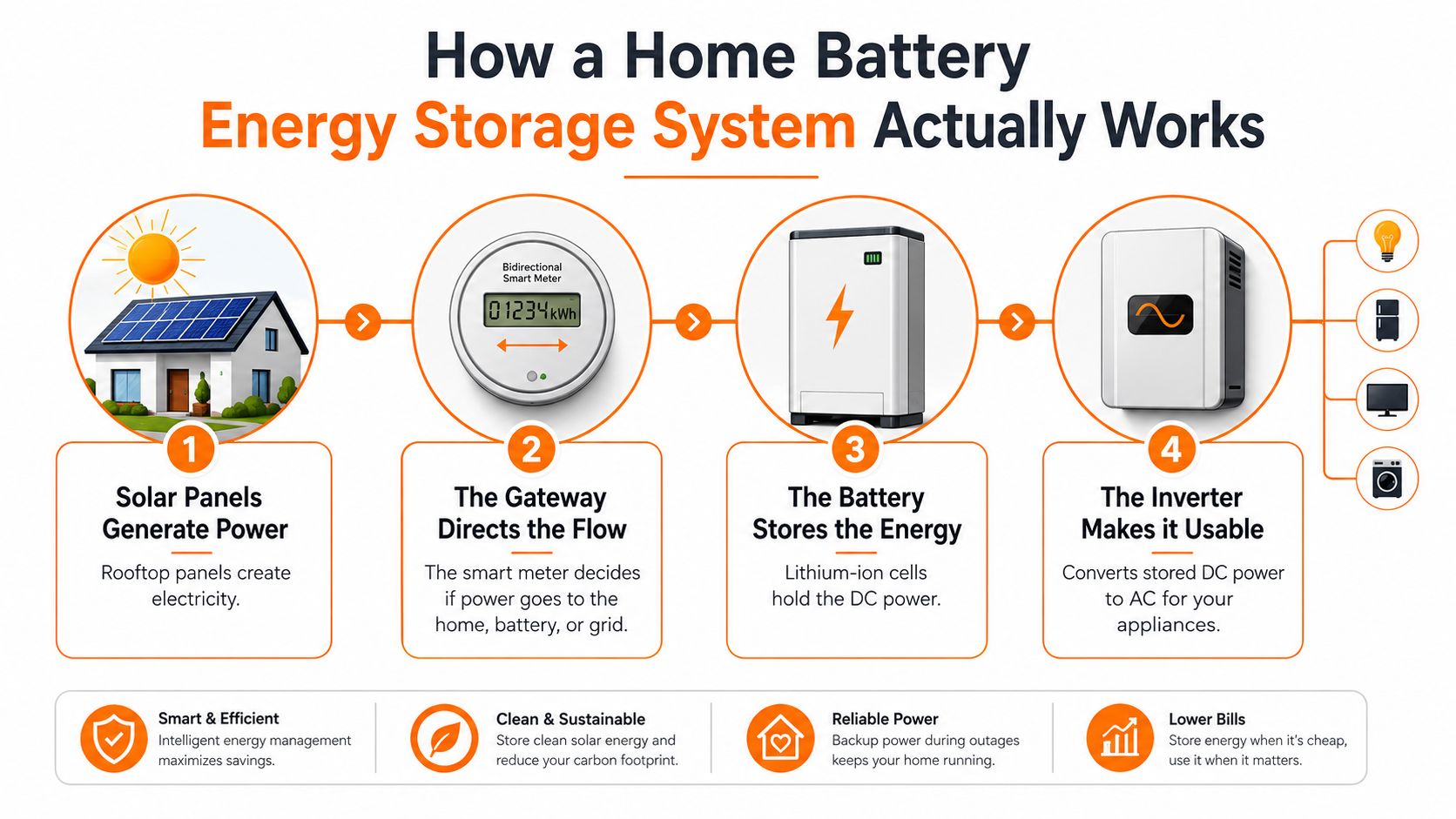

How a Home Battery Energy Storage System Actually Works

Think of a home BESS as a set of connected stages. Solar panels generate electricity, the switchboard directs it, the battery stores some of it, and the inverter converts it into a form household appliances can use.

The four essential components

Battery modules contain the electrochemical cells that store energy. Residential systems commonly use lithium-ion technology, arranged into modules so the manufacturer can manage voltage, temperature and capacity as a complete pack.

The Battery Management System, or BMS, monitors those cells. It tracks voltage and temperature, balances cells and limits charging or discharging when operating conditions move outside safe parameters. The BMS is not the same as the app on your phone. The app displays information, while the BMS performs the low-level protection work inside the battery.

The inverter handles the electrical conversion. Solar panels and battery cells produce direct current, or DC. Most household appliances and the grid use alternating current, or AC. A hybrid inverter can manage solar generation, battery charging, household loads and grid interaction in one coordinated system.

The meter and switchboard connection tell the control system where electricity is going. A meter measures imports and exports, while approved switchboard equipment separates circuits and manages the connection to the grid. Backup systems may place selected essential circuits behind a backup gateway rather than energising the entire house.

AC coupling and DC coupling

An AC-coupled system uses a separate battery inverter. It often suits a home that already has solar because the existing solar inverter can remain in place while the battery is added on the AC side.

A DC-coupled system connects the battery to the solar inverter on the DC side. This can reduce conversion steps in some operating conditions and may suit a new solar-and-battery installation. The choice depends on inverter compatibility, backup requirements, available switchboard capacity and the installer's design.

The control loop

The system constantly checks solar production, household consumption, battery state of charge and network instructions. It then decides whether to charge from solar, charge from the grid, hold energy in reserve or discharge to the home or network.

State of charge is the battery's current energy level expressed as a proportion of its usable range. A VPP may set a minimum reserve so the household retains priority access to stored energy, particularly for the evening period or outage support.

Sizing, Cycling and Round-Trip Efficiency

Battery sizing starts with the household load curve, not the roof size. A home that uses most of its electricity during the evening may benefit from a different usable capacity than a home with modest night-time demand and frequent daytime occupancy.

A simple daily sequence looks like this:

1. Morning: Solar generation begins and may cover household demand before charging the battery.
2. Middle of the day: The battery charges from surplus solar, subject to its remaining capacity and the export limit.
3. Evening: The system discharges to household loads, participates in an approved dispatch event or preserves its reserve.
4. Overnight: The battery may remain partly charged, discharge further or charge from the grid if the tariff and control strategy support that decision.

Usable capacity is not nameplate capacity

Nameplate capacity is the total capacity advertised for the battery. Usable capacity is the portion the control system permits the household to access after reserve settings and operating limits are applied.

Round-trip efficiency measures how much energy remains after charging and discharging. AEMO's CSIRO-based household projections assume 85% round-trip efficiency, meaning roughly 15% of stored energy is lost across the complete cycle. The cited AEMO-related storage coverage explains why this benchmark affects self-consumption, VPP dispatch economics and the reserve margin.

A higher-efficiency system can deliver more usable energy from the same input, but efficiency is only one design factor. Temperature, inverter limits, depth of discharge, standby consumption and dispatch rules also affect outcomes.

Comparing capacity decisions

Household Profile	Daily Evening Load (kWh)	Recommended Battery (kWh Usable)	Expected Daily Discharge	Estimated Round-Trip Losses
Low evening demand	Qualitative assessment required	Match to verified evening load	Partial discharge is likely	Based on actual system efficiency
Moderate evening demand	Qualitative assessment required	Size around regular evening requirements	Regular evening discharge	Based on actual charged energy
High evening demand	Qualitative assessment required	Larger usable capacity may be suitable	Greater discharge potential	Based on actual charged energy

The table deliberately avoids invented household averages. Your interval data should determine the recommendation. A battery that's too small may leave useful solar exposed to export limits, while an oversized battery may spend much of its time partially charged.

For a clearer explanation of how stored energy losses affect household economics, see this round-trip efficiency guide. A VPP adds another sizing question: how much capacity can be made available without interfering with household use?

Common Battery Chemistries and System Topologies

Residential battery chemistry affects safety design, energy density, degradation behaviour and system cost. The datasheet matters more than the label because warranty conditions, temperature limits, depth-of-discharge rules and installation requirements differ between products.

Chemistry comparison

Chemistry	Thermal Stability	Typical Cycle Life	Relative Cost
Lithium iron phosphate, LFP	Generally strong thermal stability compared with other lithium-ion chemistries	Product-specific, often designed for frequent cycling	Product and installation dependent
Nickel manganese cobalt, NMC	Higher energy density, with greater attention required for thermal management	Product-specific	Product and installation dependent
Lead-acid	Mature technology, heavier and more sensitive to deep discharge	Lower practical suitability for frequent deep cycling	Lower upfront cost may not equal lower lifetime cost
Sodium-ion	Emerging option with different material and temperature characteristics	Commercial data remains product-specific	Market availability and product maturity affect cost

LFP is common in newer residential systems because it offers a balance of thermal stability and regular cycling capability. It generally trades some energy density for durability characteristics that suit stationary storage.

NMC can provide higher energy density, but its installation design must account for thermal management, clearances and runaway mitigation. Homeowners should ask how the proposed system meets the relevant Australian installation and safety requirements rather than relying on chemistry alone.

Lead-acid batteries still appear in older or specialised installations. They can be useful in some applications, but their weight, lower usable range and sensitivity to deep discharge can make them less attractive for modern household cycling.

Sodium-ion is an emerging chemistry. It may become relevant where material availability, operating temperature and cost are priorities, but homeowners should examine the manufacturer's warranty and field support carefully.

AC and DC topology

AC coupling places the battery behind its own inverter and often suits a solar retrofit. DC coupling shares the solar conversion equipment and can suit a new combined installation. The topology can affect conversion losses, backup configuration and whether the battery can operate during a blackout.

A backup gateway may isolate the home from the grid and supply selected circuits. Not every system can power every appliance, and the inverter's continuous output rating may be more important than the battery's energy capacity during an outage.

A useful reference for chemistry-specific design considerations is this LFP solar battery guide. Treat it as background reading, then compare the actual product datasheet, warranty and installer documentation.

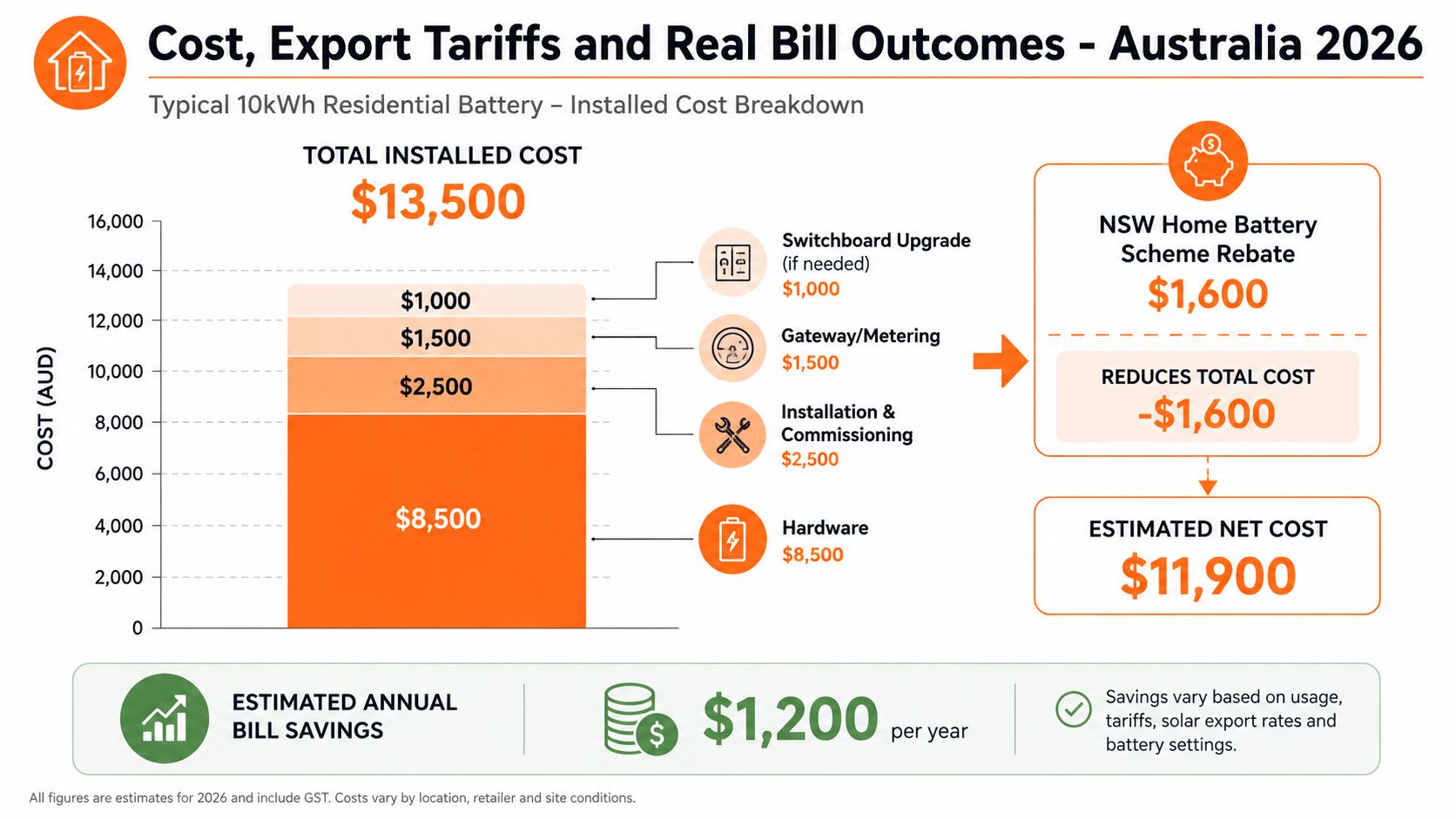

Cost, Export Tariffs and Real Bill Outcomes

A battery's financial result is an ongoing performance question, not only an installation decision. Purchase cost, system design, tariffs, export rules, cycling behaviour and any VPP payment all affect the outcome. A payback estimate that ignores those inputs can give a false sense of precision.

Hardware represents only part of the project. A quote may also cover commissioning, gateway or metering equipment, and switchboard changes where the existing board cannot support the required protection or backup circuits. Site conditions and the selected system determine the final price, so a precise national cost range cannot be stated from the verified data available here.

What NSW homeowners should check

The NSW VPP incentive covers batteries with storage capacity greater than 2kWh and up to 50kWh, according to the NSW Government VPP incentive requirements. Battery size alone does not determine eligibility. Approved equipment, installer arrangements, grid connection requirements and program conditions also apply.

NSW's Peak Demand Reduction Scheme allows up to six years of incentives to be claimed upfront for connecting to a VPP. The NSW Government's scheme information presents this as a specific incentive mechanism, rather than a standard upfront rebate.

Export income is becoming more conditional

Export value depends on both timing and local network rules. Ausgrid's two-way export tariff shows why a battery can earn more by holding spare energy for a later dispatch. During the 10am to 3pm peak export window, exports above the free threshold incur 1.2 cents per kWh. Exports during the 4pm to 9pm peak demand period receive a credit of 2.3 cents per kWh. The free export threshold varies by month from 192kWh to 212kWh, as set out in Ausgrid's export pricing fact sheet.

The practical lesson is simple: maximum daytime export is not always the best financial use of stored energy. Queensland and NSW households must also check DNSP constraints, dynamic operating envelopes and retailer terms. A VPP can turn unused battery capacity into bill relief through well-timed dispatch, but the household should compare the allowance, reserve settings, export treatment and service fees.

The ACCC's July 2025 NEM inquiry found that households with rooftop solar and a battery paid about A$323 per quarter on average, or A$217 on a VPP, as reported in Clean Energy Council coverage of the household battery surge. These are market benchmarks, not guarantees. Actual NSW and Queensland results depend on tariffs, household load, battery availability and dispatch performance.

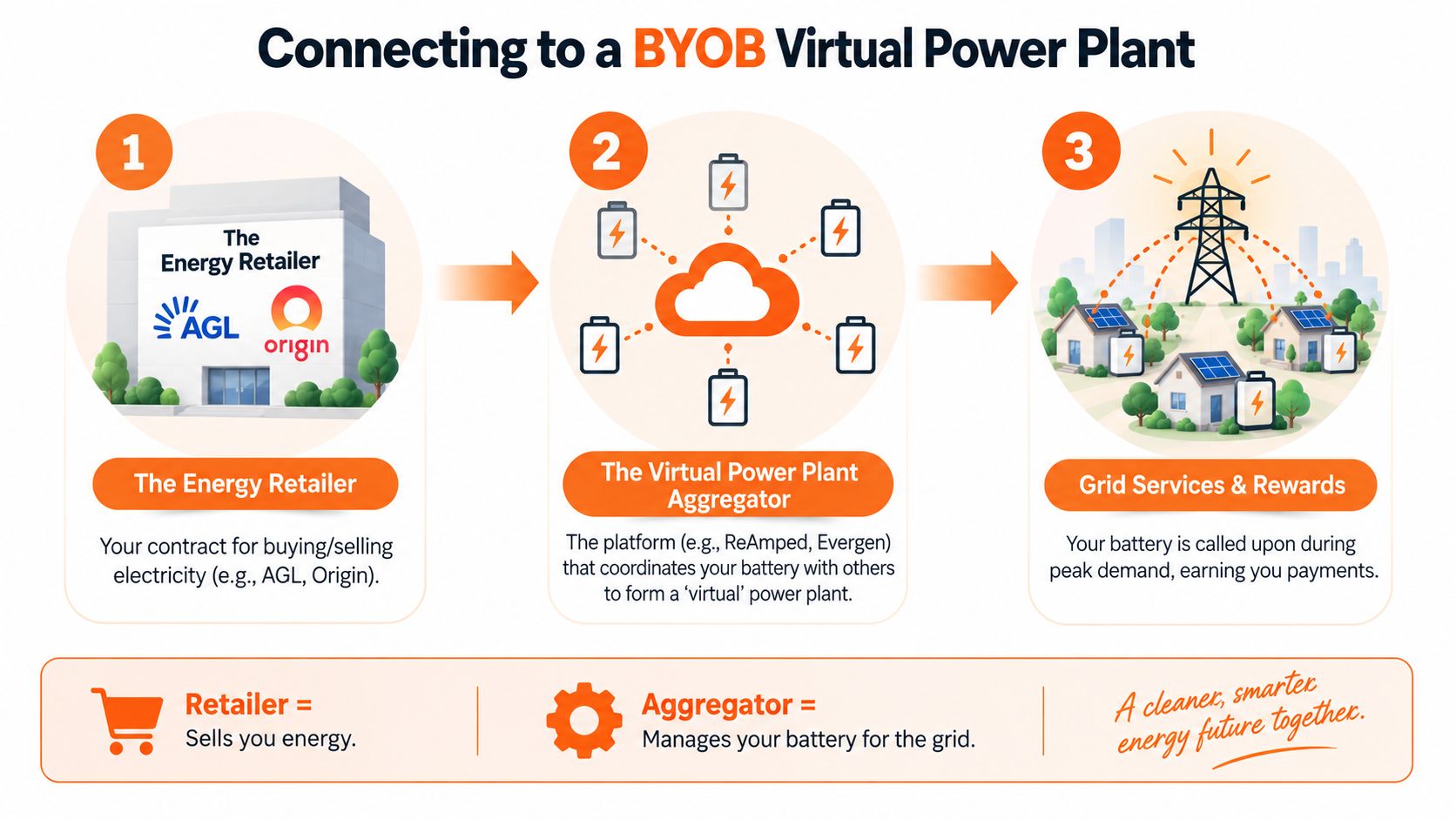

Connecting to a BYOB Virtual Power Plant

A Bring Your Own Battery VPP links an existing household battery to software that coordinates many small systems as one flexible resource. The battery stays at your home, while the operator receives permission to charge or discharge it within agreed limits. This changes the ownership question from “Was the battery installed?” to “How well is its spare capacity being used after the sun drops?”

The retailer supplies electricity and issues the bill. The aggregator runs the software that coordinates batteries for demand response or grid services. One business may perform both roles, but the contract should identify who controls the battery, who pays any allowance, and who handles service issues.

The eligibility checks

Before joining, ask for a system assessment covering:

• Inverter compatibility: The platform must communicate with the installed inverter and battery controller.
• Firmware access: Remote dispatch may require approved firmware and an active communications pathway.
• Network registration: The system must comply with the local DNSP's export and operating-envelope rules.
• Reserve settings: A defined minimum state of charge should remain available for household use or outage support.
• Warranty conditions: Dispatch frequency and depth of discharge must remain within the manufacturer's terms.

A battery that works well for self-consumption may still lack the communications pathway required for coordinated dispatch. Review the system integration requirements before assuming an existing system can join.

What participation looks like

Onboarding generally starts with an eligibility check. The operator confirms the battery and network connection, then identifies whether a firmware update or integration change is needed. The homeowner reviews dispatch terms, reserve settings and the payment or allowance structure before opting in.

During operation, the app should show household consumption, battery state of charge and dispatched events. It should also show how much energy remains reserved for the home. That visibility matters because customers retain ownership and need priority access to stored energy. A VPP can turn capacity that would otherwise sit idle into bill relief, provided dispatch rules suit the household's tariff and usage.

Electric vehicle integration follows a related idea, although a car battery can charge and discharge through a bidirectional charger. Homeowners can use this guide to V2G charging to distinguish vehicle-to-grid participation from stationary battery dispatch.

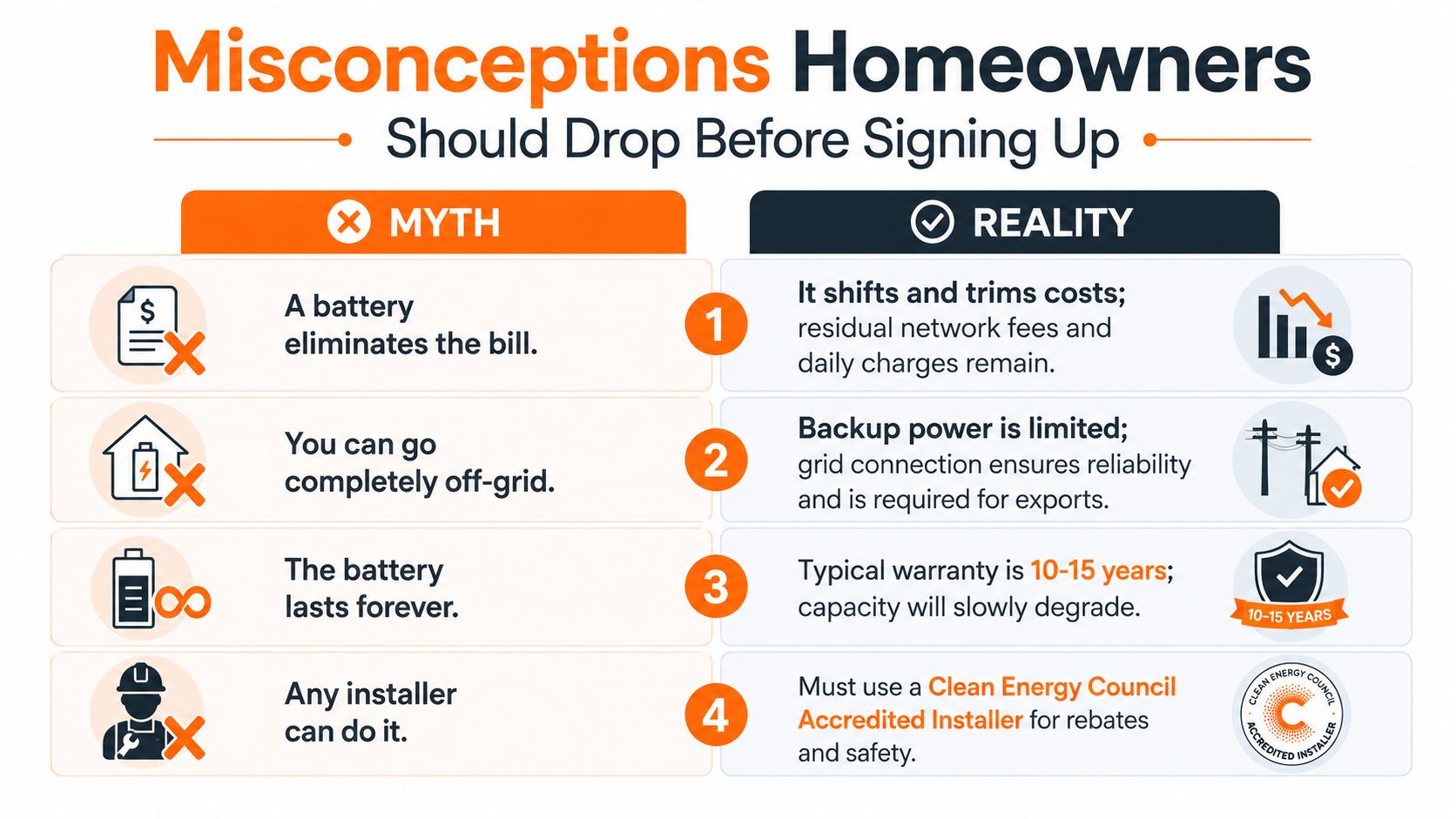

Misconceptions Homeowners Should Drop Before Signing Up

A battery can be valuable without delivering every benefit advertised in a sales conversation. Four assumptions deserve closer scrutiny.

Myth one, a battery eliminates the electricity bill. It can shift solar into higher-value periods and reduce grid purchases, but supply charges, controlled loads, seasonal demand and usage above an allowance may remain. A VPP arrangement can change the bill structure, but no household should accept guaranteed bill elimination without checking the specific tariff and terms.

Myth two, more capacity always means faster payback. Oversizing can leave energy unused if the home has limited evening demand. It can also tie up capital in capacity that could otherwise be reserved, dispatched or monetised through a suitable VPP strategy.

A larger battery is only useful when the household, tariff or grid service can use the additional capacity.

Myth three, every battery can join every VPP. Compatibility depends on the inverter protocol, firmware access, network registration and minimum reserve requirements. A battery may work perfectly for self-consumption yet lack the communications pathway required for coordinated dispatch.

Myth four, batteries need no monitoring or safety planning. The BMS monitors cell conditions, but homeowners still need compliant installation, clear warranty terms and an understanding of backup limitations. A battery can experience inverter faults, communications failures, capacity degradation or thermal events, so installation and ongoing monitoring shouldn't be treated as optional.

The following video provides another visual explanation of household battery operation and common expectations.

Key Takeaways and Where to From Here

A battery energy storage system is an ongoing performance asset. Its value depends on cycling behaviour, tariff alignment, reserve settings, export constraints and grid participation, not just on installed capacity. The installation sets the hardware. Daily control determines how much benefit that hardware delivers.

Australia's market data shows strong growth alongside a practical question about use. Household adoption has accelerated, batteries are increasingly valuable during evening demand, and large-scale storage is expanding. The Clean Energy Council reported 2GW and 5.1GWh of BESS commissioned during 2025, a 233% year-on-year increase, with annual project investment reaching AU$2 billion. The Clean Energy Council's storage investment report places batteries within the wider electricity system, rather than treating them as equipment that only serves one home.

A practical assessment sequence

1. Audit the existing system: Review solar production, interval demand, evening consumption and current exports. This shows whether spare solar is available and when the household needs energy.
2. Check technical readiness: Confirm inverter compatibility, firmware access, backup configuration and DNSP requirements before assuming the battery can join a coordinated service.
3. Read the warranty carefully: Compare the proposed dispatch depth and frequency with the manufacturer's operating conditions.
4. Model realistic value: Include round-trip losses, export tariffs, supply charges, reserve capacity and any VPP allowance. A battery that looks attractive on capacity alone may deliver less usable value after these factors are included.
5. Compare the contract: Check ownership, priority household access, exit conditions, control permissions and payment transparency.

The right configuration follows the household's consumption curve. It may not be the system with the highest headline capacity. A larger battery can leave useful capacity idle if the home cannot use it, the tariff does not reward its operation, or the VPP cannot dispatch it under suitable conditions.

A VPP changes the performance question. Spare capacity that would otherwise remain unused after the evening peak can be available for agreed grid support, while the household retains its stated reserve and priority access. The benefit depends on the control rules and payment structure, so participation should be judged by the expected operating pattern, not by the label alone.

For NSW homeowners, check current VPP incentive eligibility before making a financial commitment. HighFlow Energy operates as an Australian electricity retailer with a BYOB VPP for eligible existing solar and battery owners in Queensland and New South Wales. Its service coordinates spare battery capacity for grid support while keeping household use and reserve settings central to the operating arrangement.

Frequently asked questions

What does a battery energy storage system do?

It stores electricity, usually from rooftop solar or the grid, then releases it for household use, export or an approved grid service. The inverter converts the battery's DC electricity into AC electricity for appliances and the network, and converts AC electricity back into DC when charging.

Can a home battery reduce electricity bills?

It can reduce grid imports by storing surplus solar for later use. The result depends on the household load profile, tariff timing, system efficiency, export rules, reserve settings and any VPP arrangement. A battery does not automatically remove every charge from a bill.

What is a BYOB VPP?

A BYOB VPP connects an existing household battery to a platform that coordinates many batteries as a flexible network resource. The customer keeps the physical battery, while the operator manages agreed charging and discharging instructions. In practical terms, the battery can serve the home first and make defined spare capacity available when the program calls for it.

Do homeowners retain access to their battery?

A properly documented VPP should define household priority, minimum state-of-charge reserves and dispatch limits. Customers should confirm how much energy remains available for normal evening use and outage support. These settings are part of the service's value, not a minor contract detail.

Can any home battery join a VPP?

No. The inverter, battery controller, firmware, communications pathway, DNSP registration and warranty conditions all affect eligibility. A system may work well for solar self-consumption yet lack the technical access required for coordinated dispatch. Compatibility should be assessed before a homeowner assumes participation is available.

Is 85% round-trip efficiency good enough for a household battery?

The 85% benchmark used in AEMO's CSIRO-based household projections provides a useful reference point. Actual performance depends on the complete system, including standby consumption, temperature, inverter operation and control settings. Round-trip efficiency describes energy lost between charging and discharging, so the usable result is lower than the energy initially sent into the battery.

What should NSW homeowners check before joining?

Check the battery capacity band, approved equipment, installer requirements, network registration and the specific VPP incentive conditions. NSW's scheme includes batteries above 2kWh and up to 50kWh, while separate scheme changes allow up to six years of incentives upfront in qualifying circumstances. Confirm the current rules rather than relying on an older quote or a general description of the program.

What should Queensland homeowners compare?

Review the retailer's tariff, export treatment, reserve requirements, dispatch permissions and any allowance or credit structure. Queensland outcomes depend on the local network, household consumption and the VPP's operating rules, not just the battery's capacity.

The AEMO VPP demonstrations report, NSW VPP incentive information and ACCC NEM inquiry figures reported by the Clean Energy Council provide useful external reference points. The earlier sections cover round-trip efficiency, LFP chemistry and system integration requirements in more detail, so those links are not repeated here.
